Tables Research
View Figma ComponentKey Takeaways
- Use tables when users need to review, compare, search, or manage multiple records at once.
- Structure has a direct impact on usability. Column order, grouping, and hierarchy should follow how users naturally process the data.
- Readability depends on spacing, alignment, and visual clarity.
- Core actions like sorting, filtering, searching, and row actions should feel integrated into the table.
- As datasets grow, tables need stronger control and context preservation through patterns like pagination, sticky headers, and responsive behavior.
What Tables Are and When to Use Them
Tables are one of the most effective ways to present structured data. Their main job is to help users scan, compare, and work with information quickly.
A well-designed table makes large datasets easier to understand and reduces the effort needed to find or act on specific data.
When To Use
Tables work best when users need to manage dense or structured information. They are useful when people need to compare values across multiple records, spot patterns, review details, or perform actions on several items at the same time.
User Goals and Tasks
Tables support task-heavy workflows where users need to work with large amounts of structured data efficiently. Most table interactions usually fall into four main tasks:
- Finding records that match specific criteria
- Comparing data across rows or columns
- Viewing, editing, or adding a single record
- Taking actions on one or multiple records

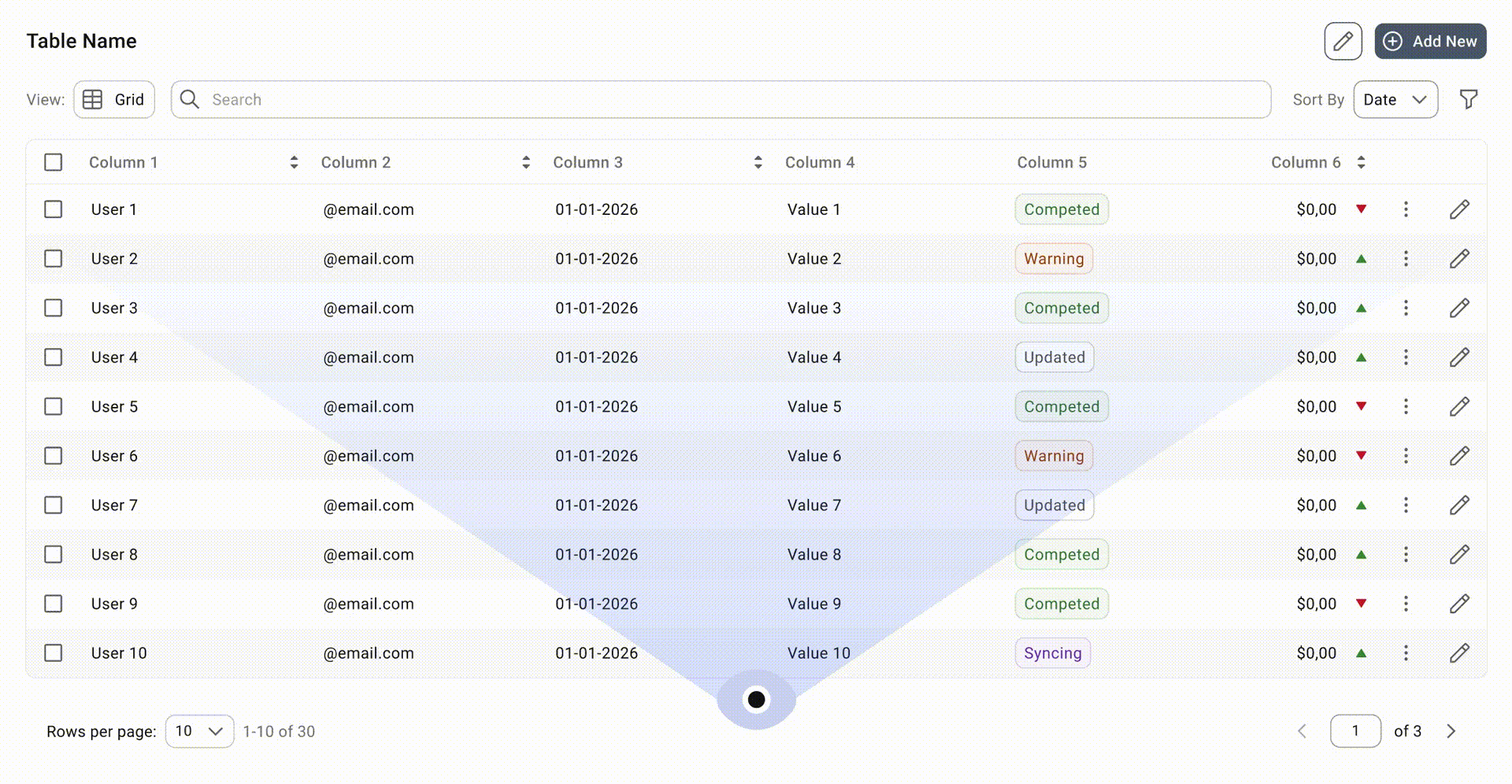

Users rarely approach a table the same way. Some know exactly what they are searching for, while others are trying to narrow down results based on conditions or patterns.
Because of this, tables usually need to support multiple ways of finding data:
- Visual scanning
- Search
- Filtering
- Sorting
Finding information should feel fast and predictable. Clear identifiers, logical column order, and visible filtering controls help users understand where to look and how to narrow results.

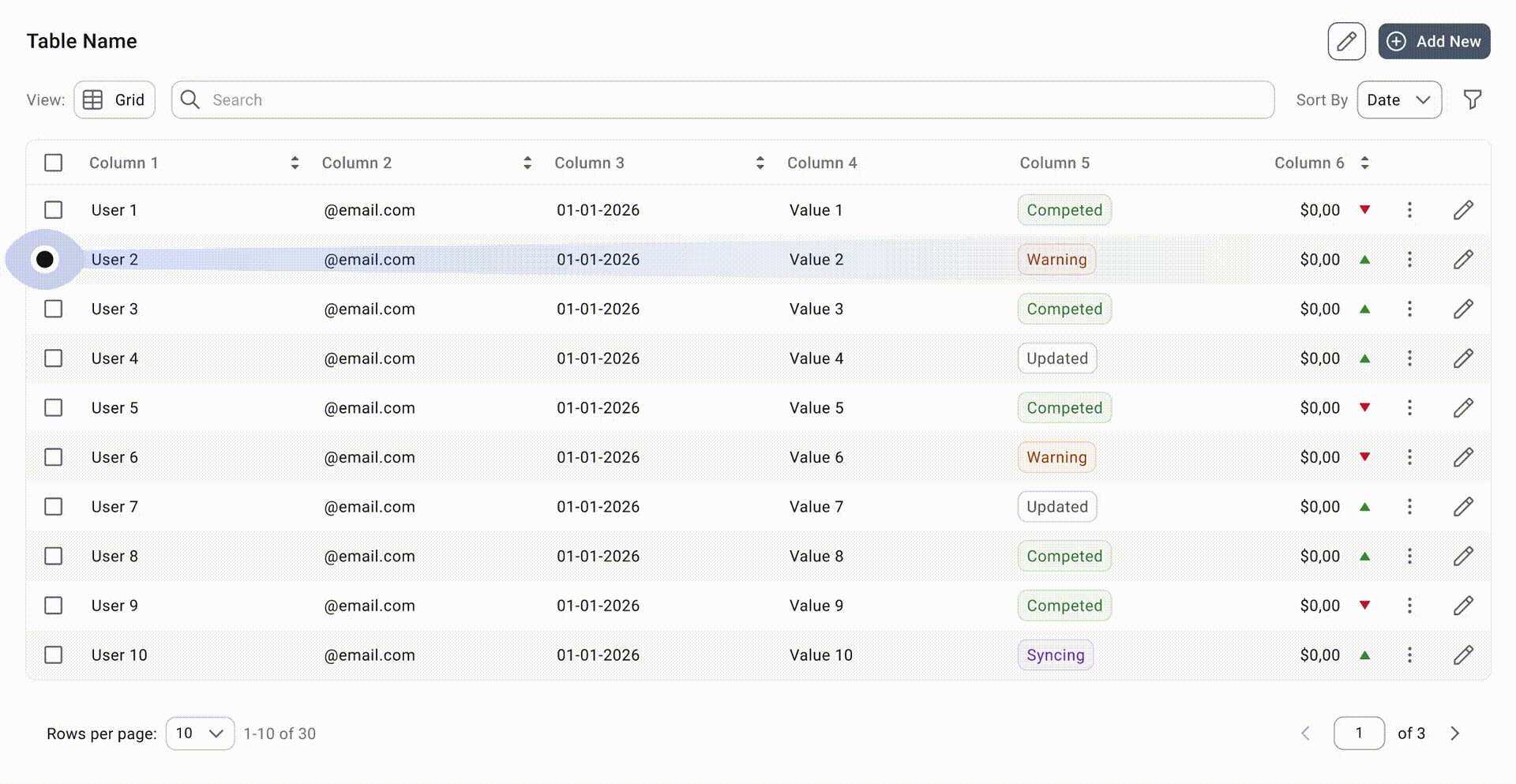

Comparison is one of the main strengths of tables. Users often need to review multiple values side by side to understand differences, spot trends, or make decisions.
Common comparison tasks include:
- Identifying differences
- Spotting patterns or outliers
- Reviewing multiple variables together
If data is misaligned, spread too far apart, or inconsistent, comparison becomes slow and adds to the cognitive load.
Comparison becomes harder when columns are inconsistent, spaced too far apart, or visually disconnected. Good table structure reduces eye movement and memory effort by keeping related data grouped and aligned consistently.

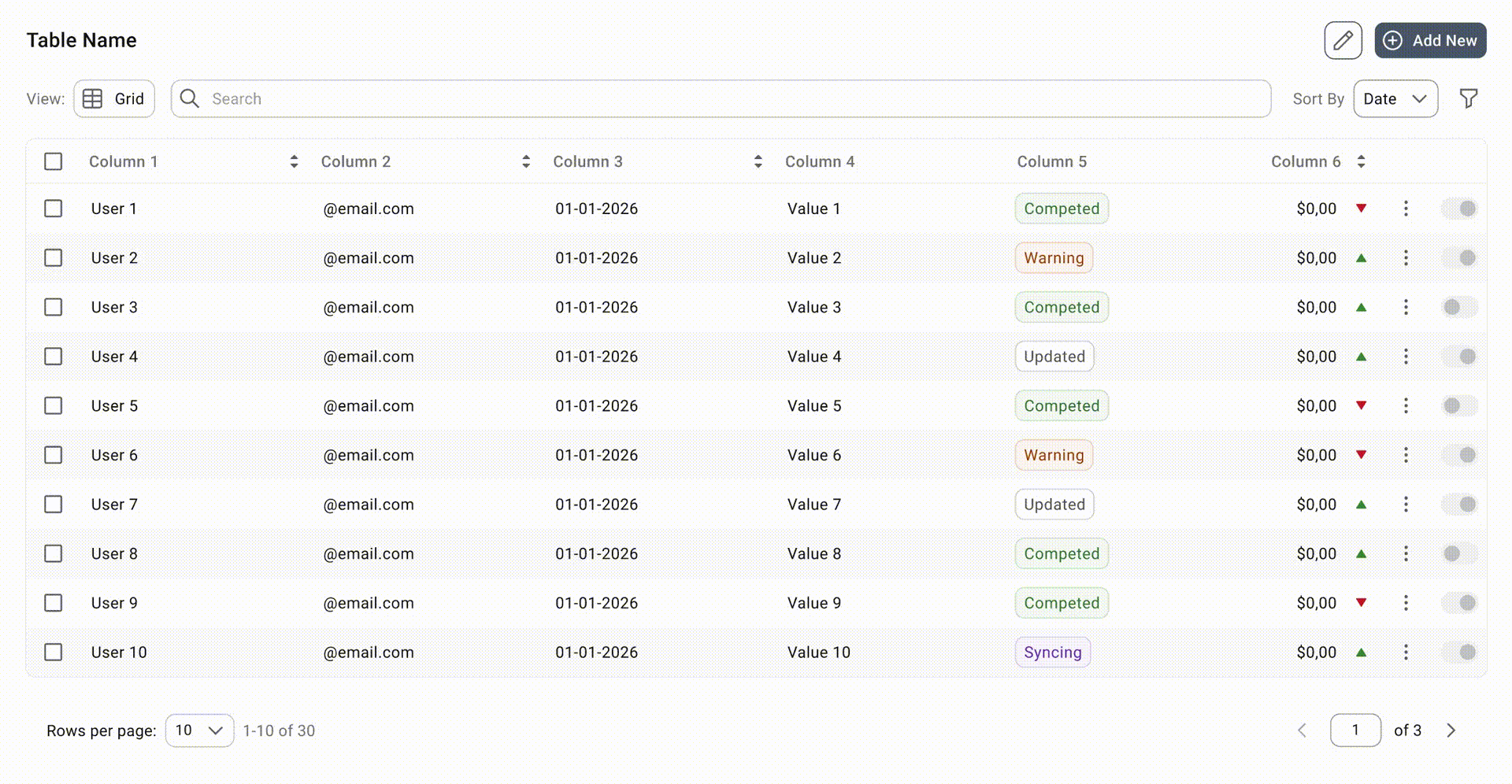

Tables are often used as working interfaces, not just for reading information. In many systems, users need to review or update records directly inside the table.
Users may:
- Review details in a row
- Edit values inline
- Add new records
Editable areas should be obvious and interactions should feel predictable. If users are unsure what can be edited or how changes are saved, they slow down and become more cautious, especially in data-heavy systems.

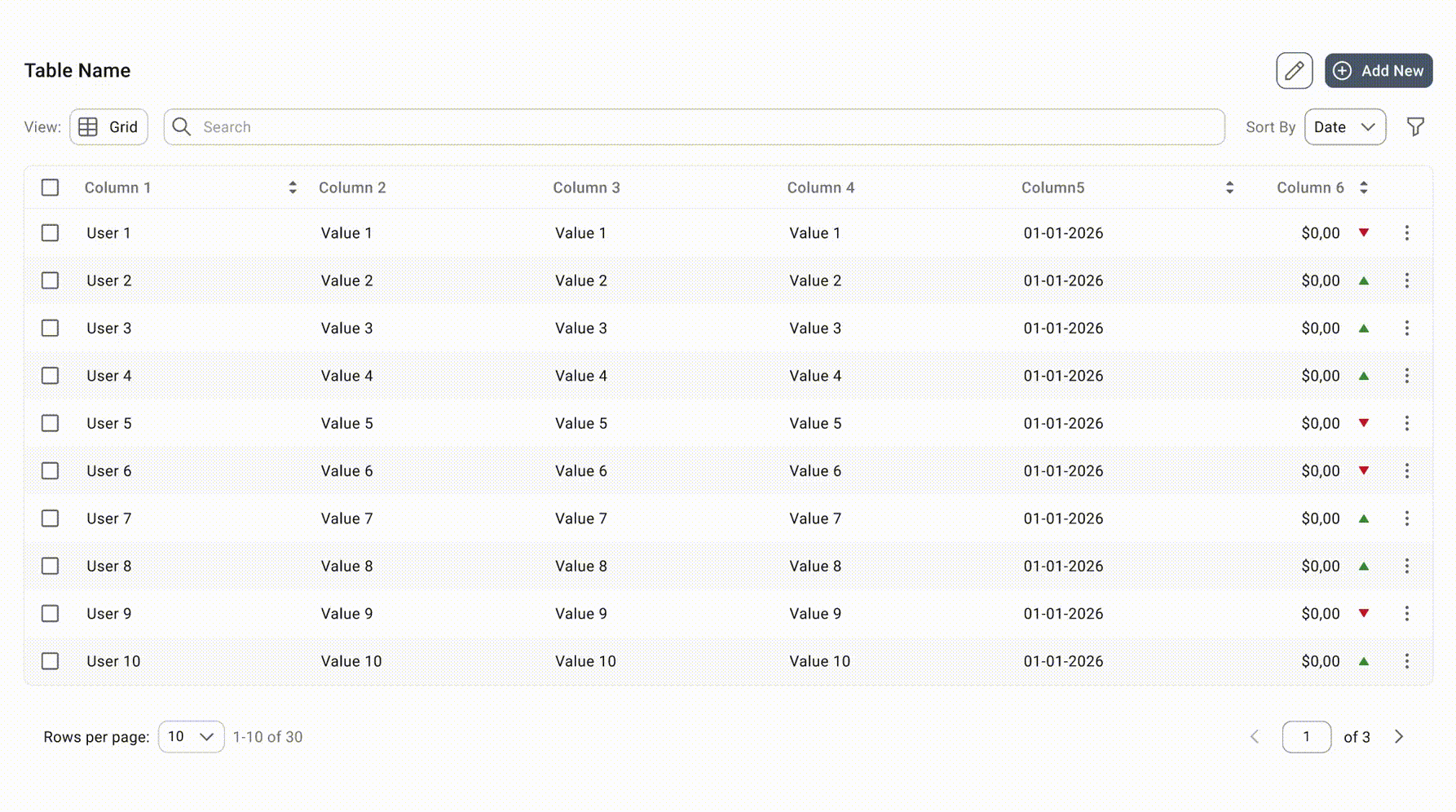

Tables frequently support operational tasks where users need to manage records directly from the interface.
- Approving or rejecting items
- Deleting or archiving records
- Assigning or updating multiple entries
These actions can happen on a single row or across many rows.
Actions should be easy to find and efficient to use, especially for bulk operations. Clear placement, selection states, and immediate feedback help users understand what happened after an action is performed.
Tables/Grids Styles
Grid style affects how easily users can scan, compare, and understand data. The right choice depends on how dense the table is, how complex the information becomes, and what users need to do with it.
This style uses horizontal and vertical dividers between every cell. It creates strong structure and makes boundaries between values very clear, which helps in dense or detail-heavy tables.
The downside is that too many lines can make the table feel heavy and harder to scan, especially when the data itself is simple.
Use this style when:
- The table contains many rows and columns
- Precision and accuracy matter
- Users need to distinguish individual cells clearly
- The table is used for reporting, analytics, or financial data
This style keeps row separators but removes vertical dividers. It reduces visual noise while still helping users track information across rows. This is one of the most common table styles because it keeps enough structure without making the layout feel crowded.
Use this style when:
- The dataset has moderate density
- Users mostly scan row by row
- You want a cleaner layout without losing readability
- Column separation is already clear through spacing and alignment
This style alternates row background colors to help users follow content across wide tables. It is especially useful when users need to scan horizontally through many columns.
The contrast between rows should stay subtle. Strong background differences can look like selection states or status indicators.
Use this style when:
- Tables are wide and require horizontal scanning
- Users need extra help tracking rows
- Data density is high
- You want to reduce the number of visible grid lines
This style removes most dividers and relies on spacing, alignment, and typography to organize content. It creates a lighter and more minimal appearance, but gives users less visual guidance.
Because structure is reduced, spacing and alignment need to be very consistent or the table quickly becomes difficult to scan.
Use this style when:
- The dataset is small
- Content is simple and easy to read
- Visual simplicity is a priority
- Users do not need heavy comparison or precision work
Tables on Mobile
Tables depend on horizontal space, which makes them harder to use on smaller screens. When the layout no longer fits comfortably, the table needs to adapt without making the data difficult to understand or interact with.

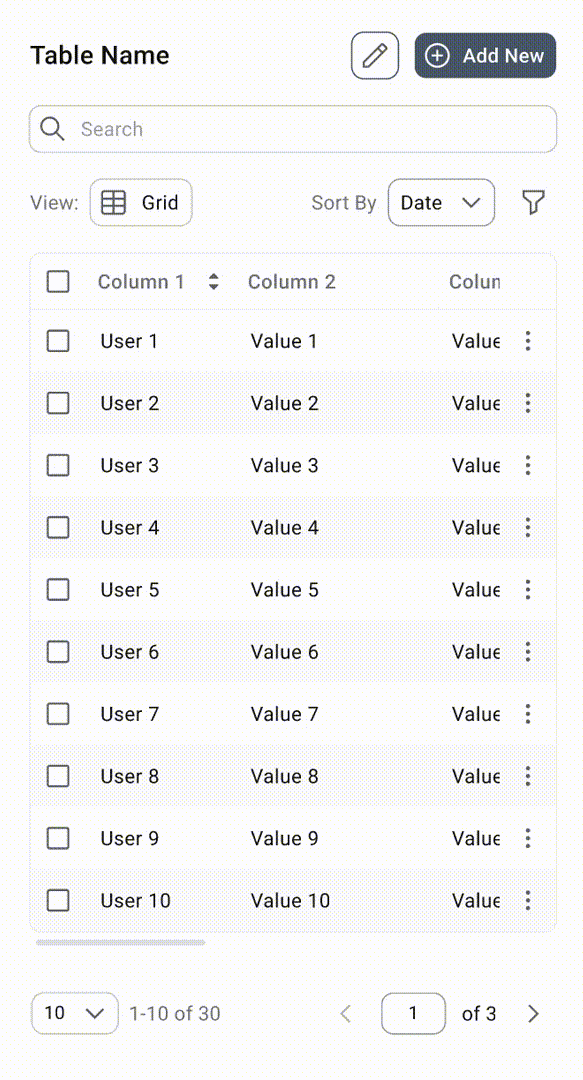

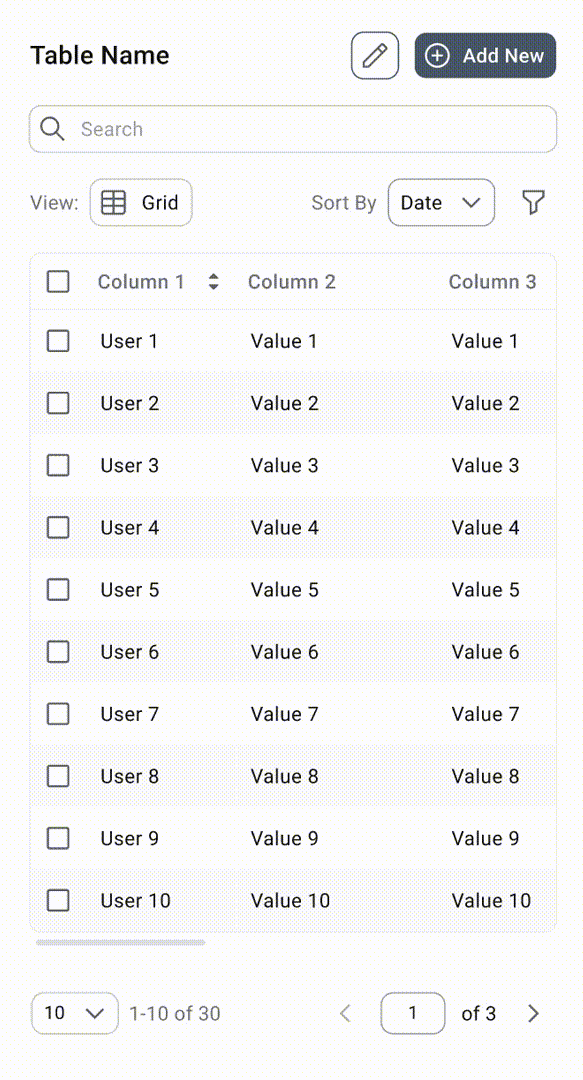

This approach keeps the original table structure and allows users to scroll sideways to access additional columns. It preserves column relationships and makes comparison easier, especially in data-heavy workflows.

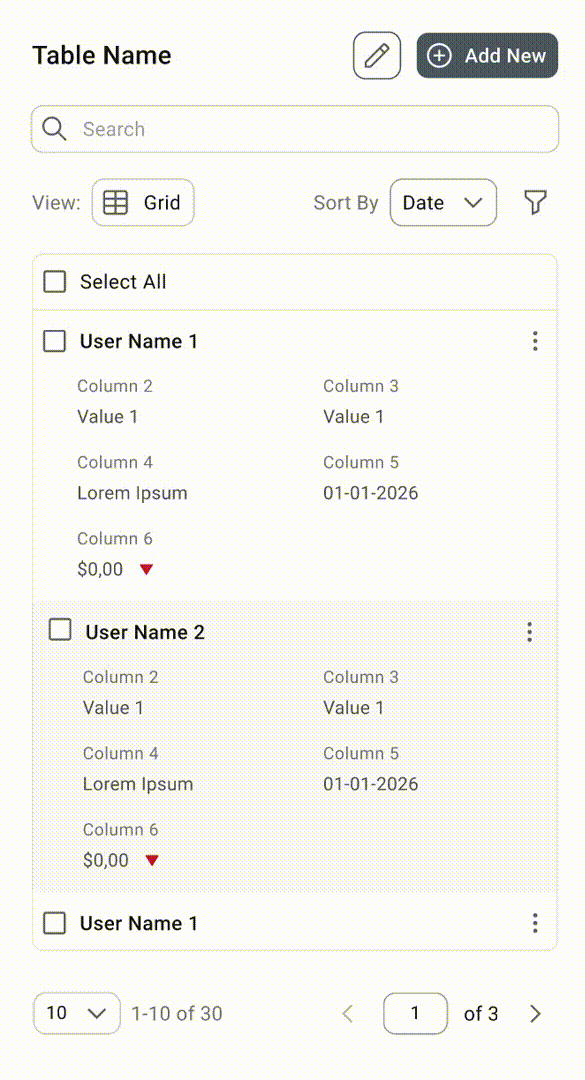

This approach converts each row into a stacked layout using label-value pairs. It removes horizontal scrolling and usually improves readability on smaller screens. The downside is that side-by-side comparison becomes harder because values are no longer aligned in columns.
Performance Issues
Tables become harder to manage as the amount of data increases. Large datasets can introduce lag, long loading times, delayed interactions, or unstable scrolling behavior.
Even a well-designed table feels unreliable if performance is poor. Users quickly lose trust when actions feel delayed or inconsistent.
Pagination and record limits usually solve most performance problems by reducing how much data loads at once.
Common solutions include:
- Pagination
- “View X records per page”
- Lazy loading smaller chunks of data
- Server-side filtering and sorting
Important Note To Know
Avoid infinite scrolling when tables contain large datasets. It makes navigation harder, weakens orientation, and creates performance issues over time.
Readability and Scanning
Users scan tables quickly rather than reading them line by line. They move across rows and down columns looking for patterns, differences, and specific values. Good table design supports this behavior by reducing eye movement and making structure predictable.
Alignment has a direct impact on readability and comparison. Consistent alignment helps users scan faster because values follow predictable visual patterns. Text is usually easier to read when left-aligned because every row starts from the same position.
Numeric values are easier to compare when digits align consistently.
Examples:
- Left-align simple text (Machine name, User name, Status)
- Left-align numbers that are identifiers rather than measurable values (Phone number, ZIP code, Badge number, Date)
- Right-align numbers that increase, decrease, or represent quantity (Money, Percentages, Population, Counts)
- Align column headers consistently with the data below them
Not every element inside a table should carry the same visual weight. Headers, important values, selected rows, and statuses should stand out enough to help users understand structure quickly.
Large tables often require scrolling, which can make users lose track of row or column relationships. Keeping context visible helps users continue comparing data without constantly reorienting themselves.
Examples:
- Sticky headers keep column labels visible during vertical scrolling
- Frozen first columns keep row identifiers visible during horizontal scrolling
Final Thoughts
Tables support some of the most task-heavy workflows in a product. When they are structured well, users can scan, compare, and manage large amounts of data with less effort.
Most usability issues come from poor organization, inconsistent behavior, or trying to fit too much into a single layout. Good tables keep interactions predictable, maintain context during navigation, and help users focus on the task instead of figuring out the interface.
